Programming Assignment: Deeper Regression, Smarter Features

Welcome to your first assignment!

You've built a solid foundation in this module, moving from simple
linear models to networks that can capture complex, non-linear
patterns. Now, it's time to apply those skills to a challenge that
mirrors how projects work in a real-world scenario.

So far, you've worked with small, manually created tensors. This time,
you'll level up by loading a larger dataset from a .csv file, a
common first step in any machine learning task. This problem is also
more complex: instead of a single input predicting an outcome, you'll
have multiple features that all work together to influence the
final delivery time.

This assignment also introduces you to one of the most creative and
impactful parts of machine learning: feature engineering. You'll
get to write a function that creates a completely new feature from the
existing data. Designing features like this is an important skill that
allows you to build more powerful and insightful models.

What You'll Do in This Assignment

Let's get started!

TIPS FOR SUCCESSFUL GRADING OF YOUR ASSIGNMENT:

Table of Contents

Imports

import pandas as pd
import torch
import torch.nn as nn
import torch.optim as optim

import matplotlib.pyplot as plt

import helper_utils
import unittests

1 - Multi-Feature Data

This time, you'll be working with a much richer dataset from a .csv
file, containing records for 100 past deliveries. Unlike the
previous labs where time depended only on distance, this new problem
is more complex. The final delivery time is now influenced by multiple
input features.

Here's a breakdown of the data you'll be working with:

To make the scenario more realistic, this data operates under a few
business rules: deliveries only occur between 8:00 AM (8.0) and 8:00
PM (20.0), and the company does not deliver further than 20 miles.

1.1 - Loading and Exploring the Raw Data

Load and understand your data.

# Load the dataset from the CSV file
file_path = './data_with_features.csv'
data_df = pd.read_csv(file_path)

# Print the shape of the DataFrame
print(f"Dataset Shape: {data_df.shape}\n")

Dataset Shape: (100, 4)

# EDITABLE CELL:

# Set the number of rows you want to display.
rows_to_display = 10

# Display the rows
print(data_df.head(rows_to_display))

distance_miles time_of_day_hours is_weekend delivery_time_minutes 0
1.60 8.20 0 7.22 1 13.09
16.80 1 32.41 2 6.97 8.02 1
17.47 3 10.66 16.07 0 37.17 4 18.24
13.47 0 38.36 5 5.74 16.59
0 29.06 6 8.80 12.25 0
23.94 7 15.36 11.76 1 32.40 8 5.35
9.42 0 17.06 9 2.46 14.44 0
14.09


Now that the data is loaded, it is time to visualize it to understand
the relationships between your features and what you are trying to
predict.

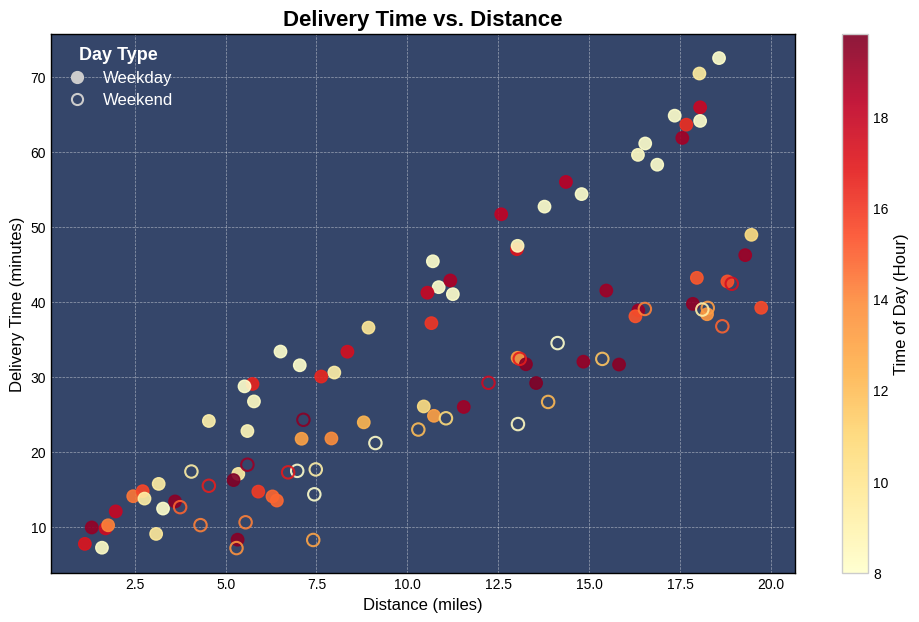

The helper function, plot_delivery_data below will create a detailed
scatter plot that visualizes all four features at once:

Look for patterns in the plot. Do you see how different features might
be influencing the delivery time?

helper_utils.plot_delivery_data(data_df)

png

1.2 - Feature Engineering: Adding Rush Hour

The visualization above reveals an interesting pattern: some
deliveries take longer even for the same distance, likely due to peak
traffic during rush hours.

Instead of hoping the model learns this complex pattern on its own,
you can use feature engineering. This is a creative step where you
apply domain knowledge to make these patterns explicit. You will
engineer a new feature that directly tells the model when a delivery
falls within a rush hour window.

This new feature will be 1 if a delivery was dispatched during the morning rush (8:00 - 10:00 AM) or the evening rush (4:00 - 7:00 PM / 16:00 - 19:00) on a weekday, and 0 otherwise.

Now, you might wonder why rush hour is only being considered on
weekdays? This reflects a common real-world pattern. The concept of a
"rush hour" is traditionally tied to weekday commuter traffic, which
is the pattern that most predictably impacts delivery times on a city-
wide scale. This specific pattern disappears on weekends. Therefore,
it's a realistic assumption to make that the primary driver of rush
hour delays is the weekday commute.

Before applying logic to the entire dataset, it's a good practice to
work with a small sample. This allows you to build and test your
function quickly.

# Define the 5 rows of data as a single 2D tensor
sample_tensor = torch.tensor([
    # distance, time_of_day, is_weekend, delivery_time
    [1.60,      8.20,        0,          7.22],   # row 1
    [13.09,     16.80,       1,          32.41],  # row 2
    [6.97,      8.02,        1,          17.47],  # row 3
    [10.66,     16.07,       0,          37.17],  # row 4
    [18.24,     13.47,       0,          38.36]   # row 5
], dtype=torch.float32)

# Use tensor slicing to separate out each column
# Slicing syntax is [:, column_index]
sample_hours = sample_tensor[:, 1]
sample_weekends = sample_tensor[:, 2]

print("--- Sliced Tensors ---")
print(f"Sample Hours:    {sample_hours}")
print(f"Sample Weekends: {sample_weekends}\n")

--- Sliced Tensors --- Sample Hours: tensor([ 8.2000, 16.8000,
8.0200, 16.0700, 13.4700]) Sample Weekends: tensor([0., 1., 1., 0.,
0.])


Now that you have the sample_hours and sample_weekends tensors
prepared, you'll use them to build the rush_hour_feature function.

Exercise 1 - rush_hour_feature

Implement the rush_hour_feature function.

Your Task:

Hint: You can use standard comparison operators (>=, <, ==) and logical operators like & (AND) and | (OR) directly on PyTorch tensors.

Additional Code Hints (Click to expand if you are stuck)

If you're stuck, think about how to build each boolean mask step by
step.

For is_morning_rush:

For is_evening_rush:

For is_weekday:

For is_rush_hour_mask:

# GRADED FUNCTION: rush_hour_feature

def rush_hour_feature(hours_tensor, weekends_tensor):
    """
    Engineers a new binary feature indicating if a delivery is in a weekday rush hour.

    Args:
        hours_tensor (torch.Tensor): A tensor of delivery times of day.
        weekends_tensor (torch.Tensor): A tensor indicating if a delivery is on a weekend.

    Returns:
        torch.Tensor: A tensor of 0s and 1s indicating weekday rush hour.
    """

    ### START CODE HERE ###

#     # Define rush hour and weekday conditions
#     is_morning_rush = hours_tensor >= 8.0 & hours_tensor < 10.0
#     is_evening_rush = hours_tensor >= 16.0 & hours_tensor < 19.0
#     is_weekday = weekends_tensor == 0

#     # Combine the conditions to create the final rush hour mask
#     is_rush_hour_mask = ( is_morning_rush | is_evening_rush ) & is_weekday == 0

    is_morning_rush = (hours_tensor >= 8.0) & (hours_tensor < 10.0)
    is_evening_rush = (hours_tensor >= 16.0) & (hours_tensor < 19.0)

    is_weekday = (weekends_tensor == 0)

    is_rush_hour_mask = (is_morning_rush | is_evening_rush) & is_weekday

    ### END CODE HERE ###

    # Convert the boolean mask to a float tensor to use as a numerical feature
    return is_rush_hour_mask.float()

rush_hour_for_sample = rush_hour_feature(sample_hours, sample_weekends)

print(f"Sample Hours:     {sample_hours.numpy()}")
print(f"Sample Weekends:  {sample_weekends.numpy()}")
print(f"Is Rush Hour?:    {rush_hour_for_sample.numpy()}")

Sample Hours: [ 8.2 16.8 8.02 16.07 13.47] Sample Weekends: [0.

      1. 0.] Is Rush Hour?: [1. 0. 0. 1. 0.]

Expected Output

Sample Hours:     [ 8.2  16.8   8.02 16.07 13.47]
Sample Weekends:  [0. 1. 1. 0. 0.]
Is Rush Hour?:    [1. 0. 0. 1. 0.]

# Test your code!
unittests.exercise_1(rush_hour_feature)

 All tests passed!

1.3 - Building the Data Preparation Pipeline

Now that you have your feature engineering function, you'll apply it
to the data preparation pipeline. The goal is to create a single
function that takes the raw pandas DataFrame as input and outputs the
final features and targets tensors that your model will use for
training.

This function will perform several key transformations: it will call
your rush_hour_feature() function to add the new engineered feature,
normalize the distance_miles and time_of_day_hours columns so they
are on a comparable scale, and handle all the necessary tensor
operations to structure the data correctly.

This process will yield a single features tensor and a single
targets tensor, perfectly formatted for your neural network.

Exercise 2 - prepare_data

Your Task:

Your task is to implement the core tensor manipulation steps inside
the prepare_data function. The code for normalization and combining
the final features is already provided.

    • raw_targets (from column index 3)
Additional Code Hints (Click to expand if you are stuck)

If you need a little help, here's a more detailed guide for each step
inside the function.

For full_tensor:

For slicing into raw_ tensors:

For is_rush_hour_feature:

For reshaping feature tensors (e.g., distances_col):

# GRADED FUNCTION: prepare_data

def prepare_data(df):
    """
    Converts a pandas DataFrame into prepared PyTorch tensors for modeling.

    Args:
        df (pd.DataFrame): A pandas DataFrame containing the raw delivery data.

    Returns:
        prepared_features (torch.Tensor): The final 2D feature tensor for the model.
        prepared_targets (torch.Tensor): The final 2D target tensor.
        results_dict (dict): A dictionary of intermediate tensors for testing purposes.
    """

    # Extract the data from the DataFrame as a NumPy array
    # (There's no direct torch.from_dataframe(), so we use .values to get a NumPy array first)
    all_values = df.values

    ### START CODE HERE ###

    # Convert all the values from the DataFrame into a single PyTorch tensor
    full_tensor = torch.tensor(all_values, dtype=torch.float)

    # Use tensor slicing to separate out each raw column
    raw_distances = full_tensor[:, 0]
    raw_hours = full_tensor[:, 1]
    raw_weekends = full_tensor[:, 2]
    raw_targets = full_tensor[:, 3]

    # Call your rush_hour_feature() function to engineer the new feature
    is_rush_hour_feature = rush_hour_feature(raw_hours, raw_weekends)

    # # Use the .unsqueeze(1) method to reshape the four 1D feature tensors into 2D column vectors
    # distances_col = None
    # hours_col = None
    # weekends_col = None
    # rush_hour_col = None
    distances_col = raw_distances.unsqueeze(1)
    hours_col     = raw_hours.unsqueeze(1)
    weekends_col  = raw_weekends.unsqueeze(1)
    rush_hour_col = is_rush_hour_feature.unsqueeze(1)

    ### END CODE HERE ###

    # Normalize the continuous feature columns (distance and time)
    dist_mean, dist_std = distances_col.mean(), distances_col.std()
    hours_mean, hours_std = hours_col.mean(), hours_col.std()

    distances_norm = (distances_col - dist_mean) / dist_std
    hours_norm = (hours_col - hours_mean) / hours_std

    # Combine all prepared 2D features into a single tensor
    prepared_features = torch.cat([
        distances_norm,
        hours_norm,
        weekends_col,
        rush_hour_col
    ], dim=1) # dim=1 concatenates them column-wise, stacking features side by side

    # Prepare targets by ensuring they are the correct shape
    prepared_targets = raw_targets.unsqueeze(1)

    # Dictionary for Testing Purposes
    results_dict = {
        'full_tensor': full_tensor,
        'raw_distances': raw_distances,
        'raw_hours': raw_hours,
        'raw_weekends': raw_weekends,
        'raw_targets': raw_targets,
        'distances_col': distances_col,
        'hours_col': hours_col,
        'weekends_col': weekends_col,
        'rush_hour_col': rush_hour_col
    }


    return prepared_features, prepared_targets, results_dict

# Create a small test DataFrame with the first 5 entries
test_df = data_df.head(5).copy()

# Print the "Before" state as a raw tensor
raw_test_tensor = torch.tensor(test_df.values, dtype=torch.float32)
print("--- Raw Tensor (Before Preparation) ---\n")
print(f"Shape: {raw_test_tensor.shape}")
print("Values:\n", raw_test_tensor)
print("\n" + "="*50 + "\n")

# Run the function to get the prepared "after" tensors
test_features, test_targets, _ = prepare_data(test_df)

# Print the "After" state
print("--- Prepared Tensors (After Preparation) ---")
print("\n--- Prepared Features ---\n")
print(f"Shape: {test_features.shape}")
print("Values:\n", test_features)

print("\n--- Prepared Targets ---")
print(f"Shape: {test_targets.shape}")
print("Values:\n", test_targets)

--- Raw Tensor (Before Preparation) ---

Shape: torch.Size([5, 4]) Values: tensor([[ 1.6000, 8.2000, 0.0000,
7.2200], [13.0900, 16.8000, 1.0000, 32.4100], [ 6.9700, 8.0200,
1.0000, 17.4700], [10.6600, 16.0700, 0.0000, 37.1700], [18.2400,
13.4700, 0.0000, 38.3600]])

==================================================

--- Prepared Tensors (After Preparation) ---

--- Prepared Features ---

Shape: torch.Size([5, 4]) Values: tensor([[-1.3562, -1.0254, 0.0000,
1.0000], [ 0.4745, 1.0197, 1.0000, 0.0000], [-0.5006, -1.0682,
1.0000, 0.0000], [ 0.0873, 0.8461, 0.0000, 1.0000], [ 1.2951,
0.2278, 0.0000, 0.0000]])

--- Prepared Targets --- Shape: torch.Size([5, 1]) Values: tensor([[
7.2200], [32.4100], [17.4700], [37.1700], [38.3600]])

Expected Output

--- Prepared Tensors (After Preparation) ---

--- Prepared Features ---

Shape: torch.Size([5, 4])
Values:
 tensor([[-1.3562, -1.0254,  0.0000,  1.0000],
        [ 0.4745,  1.0197,  1.0000,  0.0000],
        [-0.5006, -1.0682,  1.0000,  0.0000],
        [ 0.0873,  0.8461,  0.0000,  1.0000],
        [ 1.2951,  0.2278,  0.0000,  0.0000]])

--- Prepared Targets ---
Shape: torch.Size([5, 1])
Values:
 tensor([[ 7.2200],
        [32.4100],
        [17.4700],
        [37.1700],
        [38.3600]])

# Test your code!
unittests.exercise_2(prepare_data)

 All tests passed!


Excellent! As you can see from the sample results above, your
prepare_data function successfully transformed the raw data into the
two distinct tensors your model needs for training.

You started with a .csv file containing all the data for each
delivery. Your function processed this and produced:

Now that you have verified that your data preparation pipeline works
correctly on a small sample, it's time to run it on the entire dataset
to prepare all 100 delivery records for training.

# Process the entire DataFrame to get the final feature and target tensors.
features, targets, _ = prepare_data(data_df)

1.4 - Visualizing the Prepared Data

Now that your data preparation pipeline is complete, you can visualize
the results to confirm your feature engineering worked as expected.

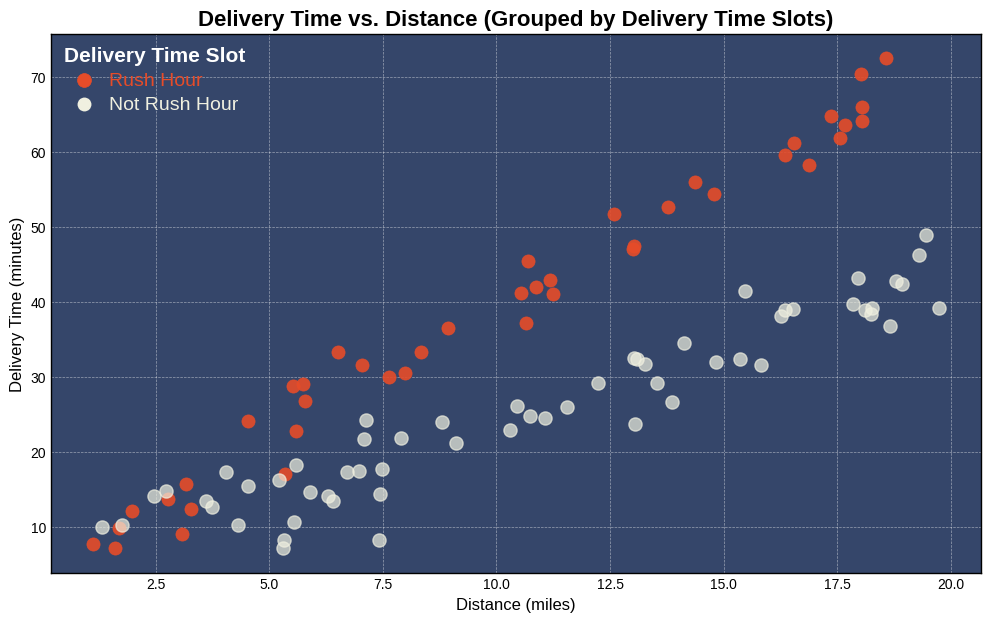

Rush Hour Deliveries Plot

helper_utils.plot_rush_hour(data_df, features)

png

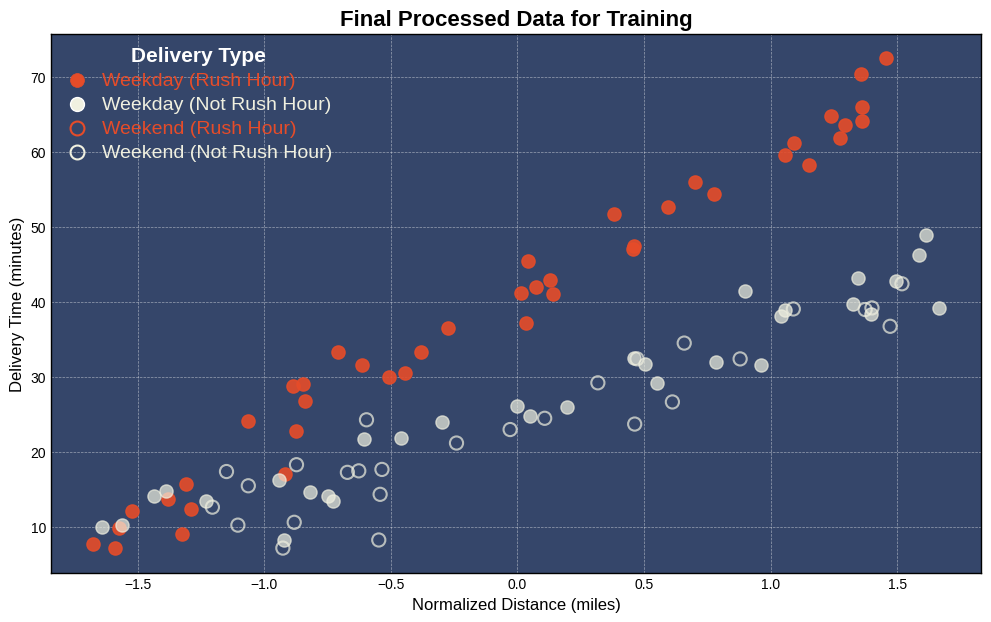

Final Prepared Data Plot

helper_utils.plot_final_data(features, targets)

png

2 - Building the Neural Network

With your data pipeline complete, you are now ready for the next major
stage: building the model.

Since your problem now involves multiple features, you'll need a more
sophisticated architecture than the ones you had seen before. You will
build a neural network with two hidden layers to capture the complex
relationships between all your input features.

Exercise 3 - init_model

Implement the init_model function, to define the model architecture,
the optimizer, and the loss function.

Your Task:

Additional Code Hints (Click to expand if you are stuck)

For the Model:

For the Optimizer:

For the Loss Function:

# GRADED FUNCTION: init_model

def init_model():
    """
    Initializes the neural network model, optimizer, and loss function.

    Returns:
        model (nn.Sequential): The initialized PyTorch sequential model.
        optimizer (torch.optim.Optimizer): The initialized optimizer for training.
        loss_function: The initialized loss function.
    """

    # Set the random seed for reproducibility of results (DON'T MANIPULATE IT)
    torch.manual_seed(41)

    ### START CODE HERE ###

    # Define the model architecture using nn.Sequential
    model = nn.Sequential(
        # Input layer (Linear): 4 input features, 64 output features
        nn.Linear(4,64),
        # First ReLU activation function
        nn.ReLU(),
        # Hidden layer (Linear): 64 inputs, 32 outputs
        nn.Linear(64,32),
        # Second ReLU activation function
        nn.ReLU(),
        # Output layer (Linear): 32 inputs, 1 output (the prediction)
        nn.Linear(32,1)
    )

    # Define the optimizer (Stochastic Gradient Descent)
    optimizer = optim.SGD(model.parameters(), lr=0.01)

    # Define the loss function (Mean Squared Error for regression)
    loss_function = nn.MSELoss()

    ### END CODE HERE ###

    return model, optimizer, loss_function

model, optimizer, loss_function = init_model()

print(f"{'='*30}\nInitialized Model Architecture\n{'='*30}\n{model}")
print(f"\n{'='*30}\nOptimizer\n{'='*30}\n{optimizer}")
print(f"\n{'='*30}\nLoss Function\n{'='*30}\n{loss_function}")

============================== Initialized Model Architecture
============================== Sequential( (0): Linear(in_features=4,
out_features=64, bias=True) (1): ReLU() (2): Linear(in_features=64,
out_features=32, bias=True) (3): ReLU() (4): Linear(in_features=32,
out_features=1, bias=True) )

============================== Optimizer
============================== SGD ( Parameter Group 0 dampening: 0
differentiable: False foreach: None fused: None lr: 0.01 maximize:
False momentum: 0 nesterov: False weight_decay: 0 )

============================== Loss Function
============================== MSELoss()

Expected Output:

==============================
Initialized Model Architecture
==============================
Sequential(
  (0): Linear(in_features=4, out_features=64, bias=True)
  (1): ReLU()
  (2): Linear(in_features=64, out_features=32, bias=True)
  (3): ReLU()
  (4): Linear(in_features=32, out_features=1, bias=True)
)

==============================
Optimizer
==============================
SGD (
Parameter Group 0
    dampening: 0
    differentiable: False
    foreach: None
    fused: None
    lr: 0.01
    maximize: False
    momentum: 0
    nesterov: False
    weight_decay: 0
)

==============================
Loss Function
==============================
MSELoss()

# Test your code!
unittests.exercise_3(init_model)

 All tests passed!

3 - Training the Model

With your data prepared and your model architecture defined, it's time
for the most important stage: training.

Exercise 4 - train_model

Implement the complete training loop inside the train_model
function.

Your Task:

Additional Code Hints (Click to expand if you are stuck)

For Initialization:

For the Forward Pass:

For Calculating Loss:

For the Gradient Steps:

# GRADED FUNCTION: train_model

def train_model(features, targets, epochs, verbose=True):
    """
    Trains the model using the provided data for a number of epochs.

    Args:
        features (torch.Tensor): The input features for training.
        targets (torch.Tensor): The target values for training.
        epochs (int): The number of training epochs.
        verbose (bool): If True, prints training progress. Defaults to True.

    Returns:
        model (nn.Sequential): The trained model.
        losses (list): A list of loss values recorded every 5000 epochs.
    """

    # Initialize a list to store the loss
    losses = []

    ### START CODE HERE ###

    # Initialize the model, optimizer, and loss function using `init_model`
    model, optimizer, loss_function = init_model()

    # Loop through the specified number of epochs
    for epoch in range(epochs):

        # Forward pass: Make predictions
        outputs = model(features)

        # Calculate the loss
        loss = loss_function(outputs, targets)

        # Zero the gradients
        optimizer.zero_grad()

        # Backward pass: Compute gradients
        loss.backward()

        # Update the model's parameters
        optimizer.step()

    ### END CODE HERE ###

        # Every 5000 epochs, record the loss and print the progress
        if (epoch + 1) % 5000 == 0:
            losses.append(loss.item())
            if verbose:
                print(f"Epoch [{epoch+1}/{epochs}], Loss: {loss.item():.4f}")

    return model, losses

test_model, loss = train_model(features, targets, 10000)

Epoch [5000/10000], Loss: 3.0901 Epoch [10000/10000], Loss: 1.6064

Expected Output (approximately):

Epoch [5000/10000], Loss: 3.0901
Epoch [10000/10000], Loss: 1.6064

# Test your code!
unittests.exercise_4(train_model, features, targets)

 All tests passed!

Submission Note

Congratulations! You've completed the final graded exercise of this
assignment.

If you've successfully passed all the unit tests above, you've
completed the core requirements of this assignment. Feel free to
submit your work now. The grading process runs in the
background, so it will not disrupt your progress and you can continue
on with the rest of the material.

🚨 IMPORTANT NOTE If you have passed all tests within the notebook, but the autograder shows a system error after you submit your work:

Grader Error: Grader feedback not found

Autograder failed to produce the feedback...


This is typically a temporary system glitch. The most common solution
is to resubmit your assignment, as this often resolves the problem.
Occasionally, it may be necessary to resubmit more than once.

If the error persists, please reach out for support in the
[DeepLearning.AI Community
Forum](https://community.deeplearning.ai/c/course-q-a/pytorch-for-
developers/pytorch-fundamentals/560).


It's time to put your train_model function to work. Run the complete
training on the features and targets. You will train the model for
30,000 epochs (more than the test run to ensure full convergence on
the complete dataset), which gives it ample opportunity to learn the
patterns in the data.

# Training loop
model, loss = train_model(features, targets, 30000)

4 - Evaluating Model Performance

Now that your model is trained, it's time to evaluate its performance.
A simple yet powerful way to do this for a regression task is to plot
the model's predictions against the actual target values.

Let's see how well your model did!

# Disable gradient calculation for efficient predictions
with torch.no_grad():
    # Perform a forward pass to get model predictions
    predicted_outputs = model(features)

# Plot predictions vs. actual targets to evaluate performance
helper_utils.plot_model_predictions(predicted_outputs, targets)

The results look fantastic!

As you can see in the "Actual vs. Predicted" plot, the model's
predictions (the light gray points) form a very tight cluster that
follows the "Perfect Prediction" line almost exactly. This indicates
that your model has learned the patterns in the data very well and is
making highly accurate predictions.

A result like this in a real-world project would be considered a great
success. With your model's performance evaluated, you're ready for the
final step: using it to make a prediction on new, unseen data.

5 - Making a New Prediction

With a well-trained and evaluated model, you've reached the final and
most practical stage: prediction. It's time to use your model to
make a prediction on new, unseen data.

Note on Business Rules:
Remember the constraints of the delivery service when setting your
values:

# EDITABLE CELL: Set your values below

# Change the values below to get an estimate for a different delivery
# Set distance for the delivery in miles
distance_miles = None
# Set time of day in 24-hour format (e.g., 9.5 for 9:30 AM)
time_of_day_hours = None
# Use True/False or 1/0 to indicate if it's a weekend
is_weekend = None

# Convert the raw inputs into a 2D tensor for the model
raw_input_tensor = torch.tensor([[distance_miles, time_of_day_hours, is_weekend]], dtype=torch.float32)

Now, you'll pass your trained model, the original data_df, your
raw_input_tensor, and the rush_hour_feature function to the helper
function. This will process your new inputs and use the model to
generate the estimated delivery time.

helper_utils.prediction(model, data_df, raw_input_tensor, rush_hour_feature)

Conclusion

Congratulations on completing your first assignment!

You have successfully navigated every key stage of the pipeline. You
started with raw data from a .csv file, performed feature
engineering to add business logic to your dataset, and built a
complete data preparation pipeline to automate the process.

From there, you designed and trained a multi-layer neural network,
moving beyond the simple models of the ungraded labs. You then
evaluated its performance by visualizing its predictions and,
finally, used your trained model to make a prediction on new,
unseen data.

The skills you've practiced here on manipulating tensors, designing
features, and building end-to-end training pipelines are the
fundamental building blocks for tackling even more complex challenges
in deep learning. You now have a solid foundation to build upon as you
move forward. Well done!

before:torch_study_3
continue:[[]]
